Garage Workbench
A garage workbench for repairs and assembly, with a storage shelf below.
$14.99 or every plan for $14.99 a month
The store opens soon.
In the plan

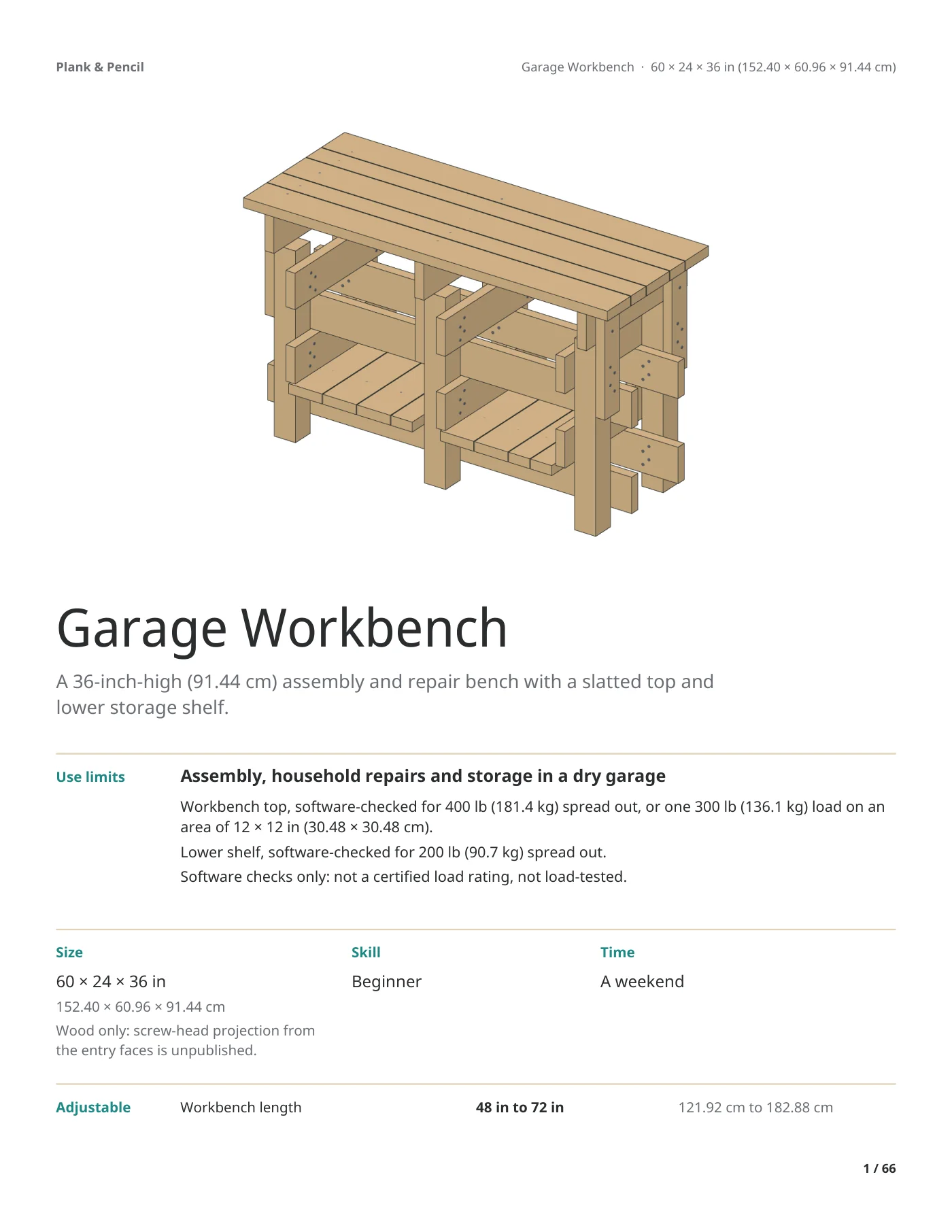

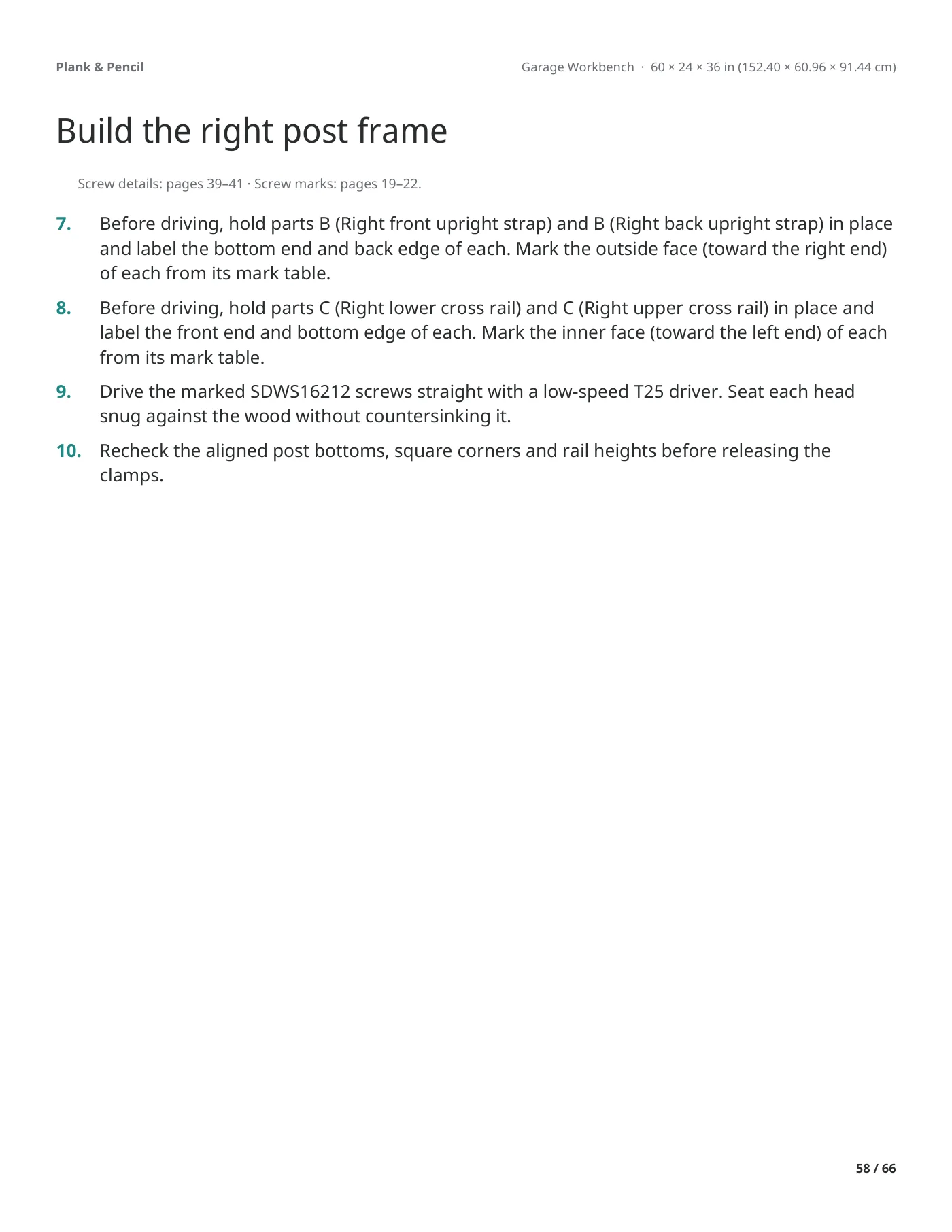

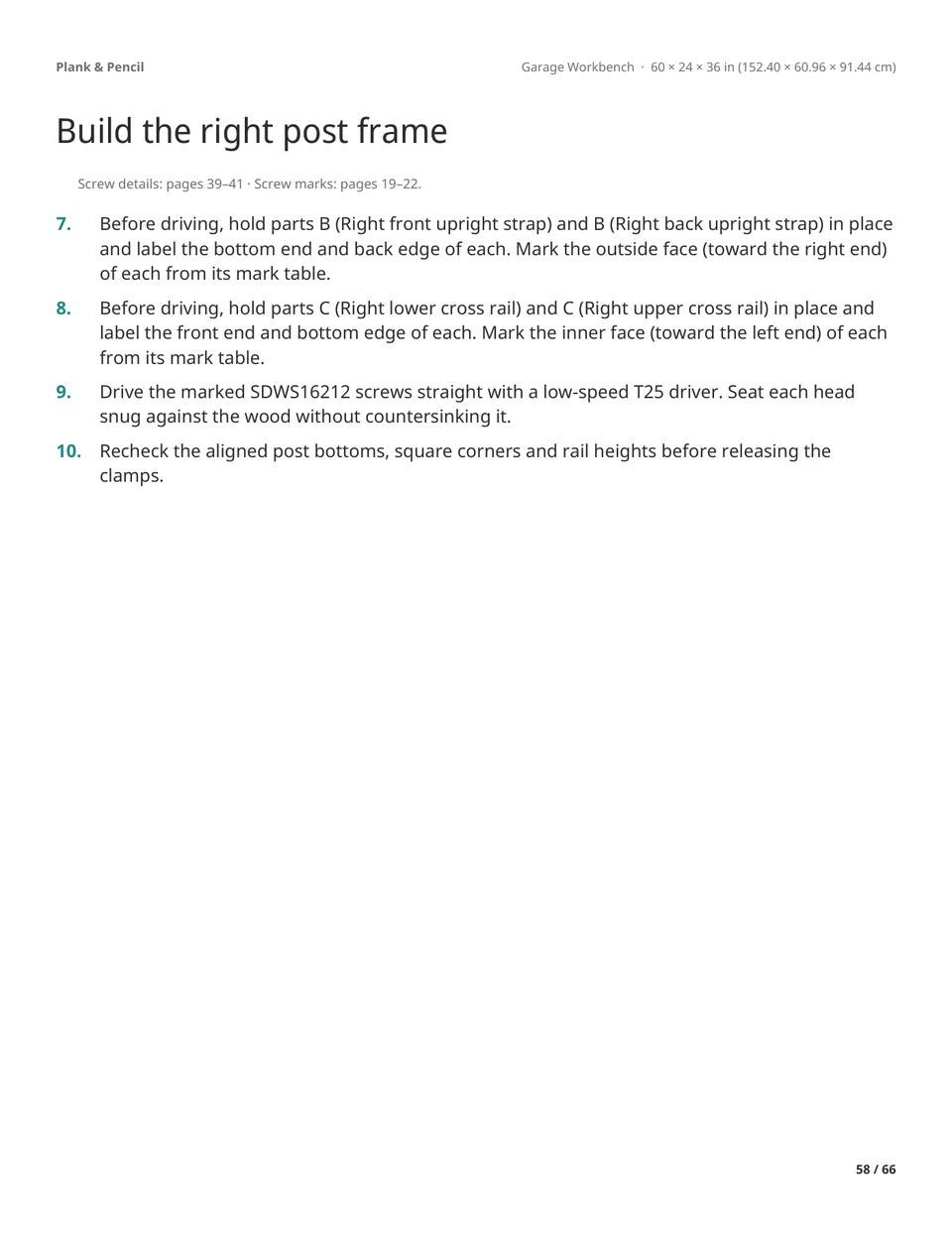

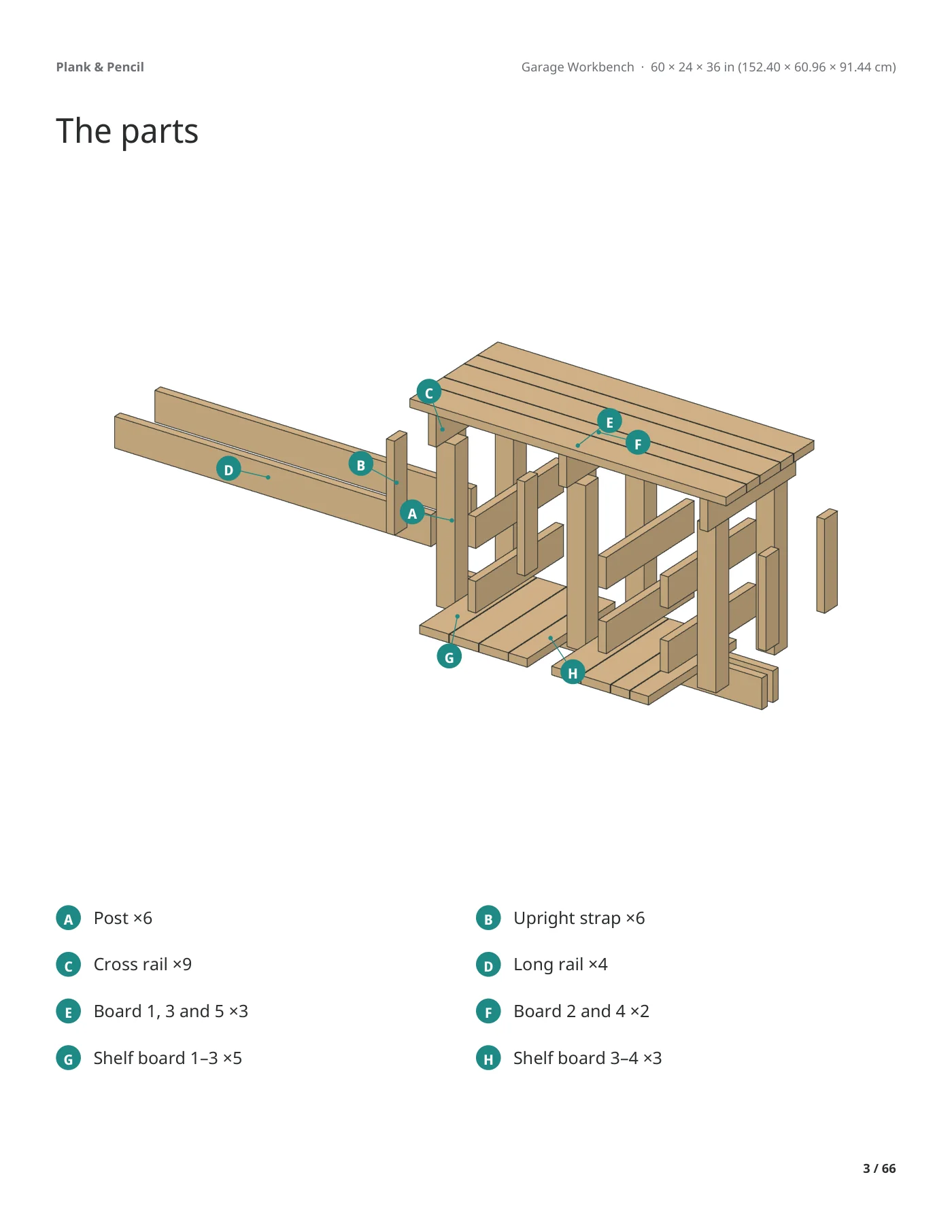

- A 66-page manual to print on US Letter

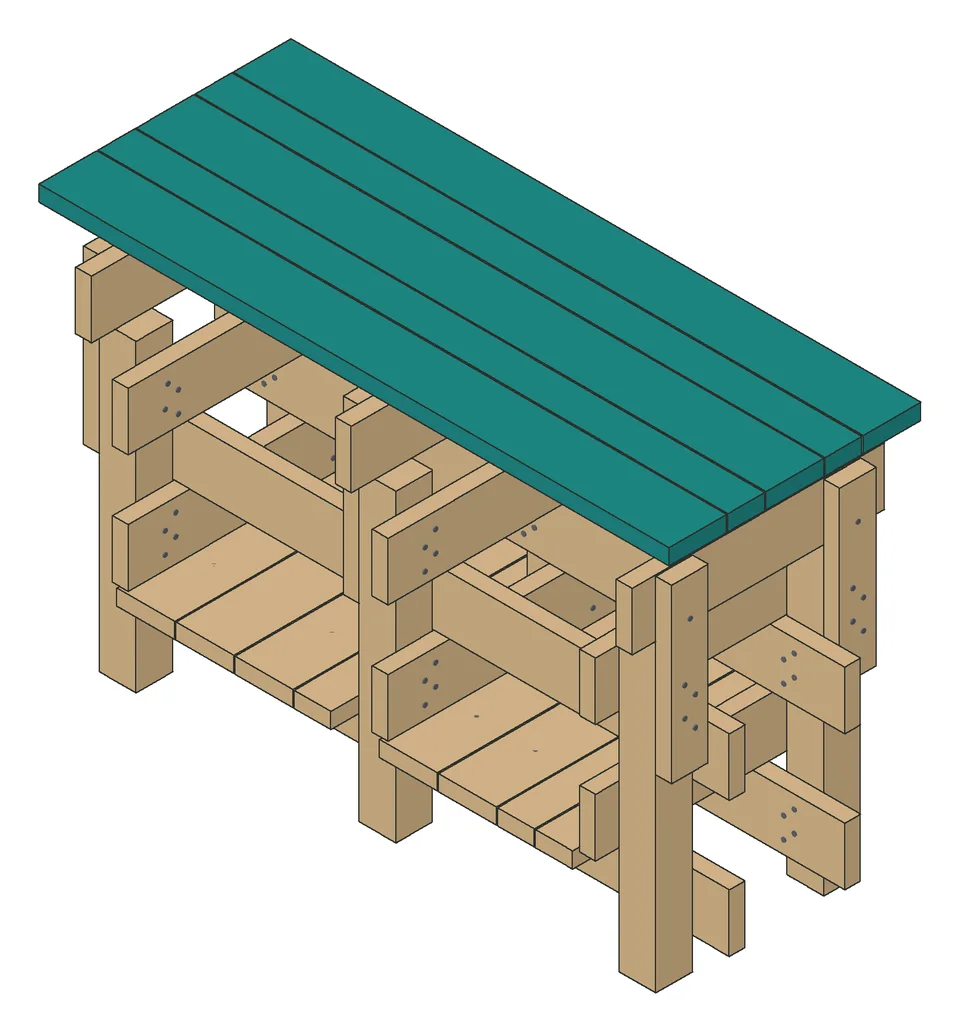

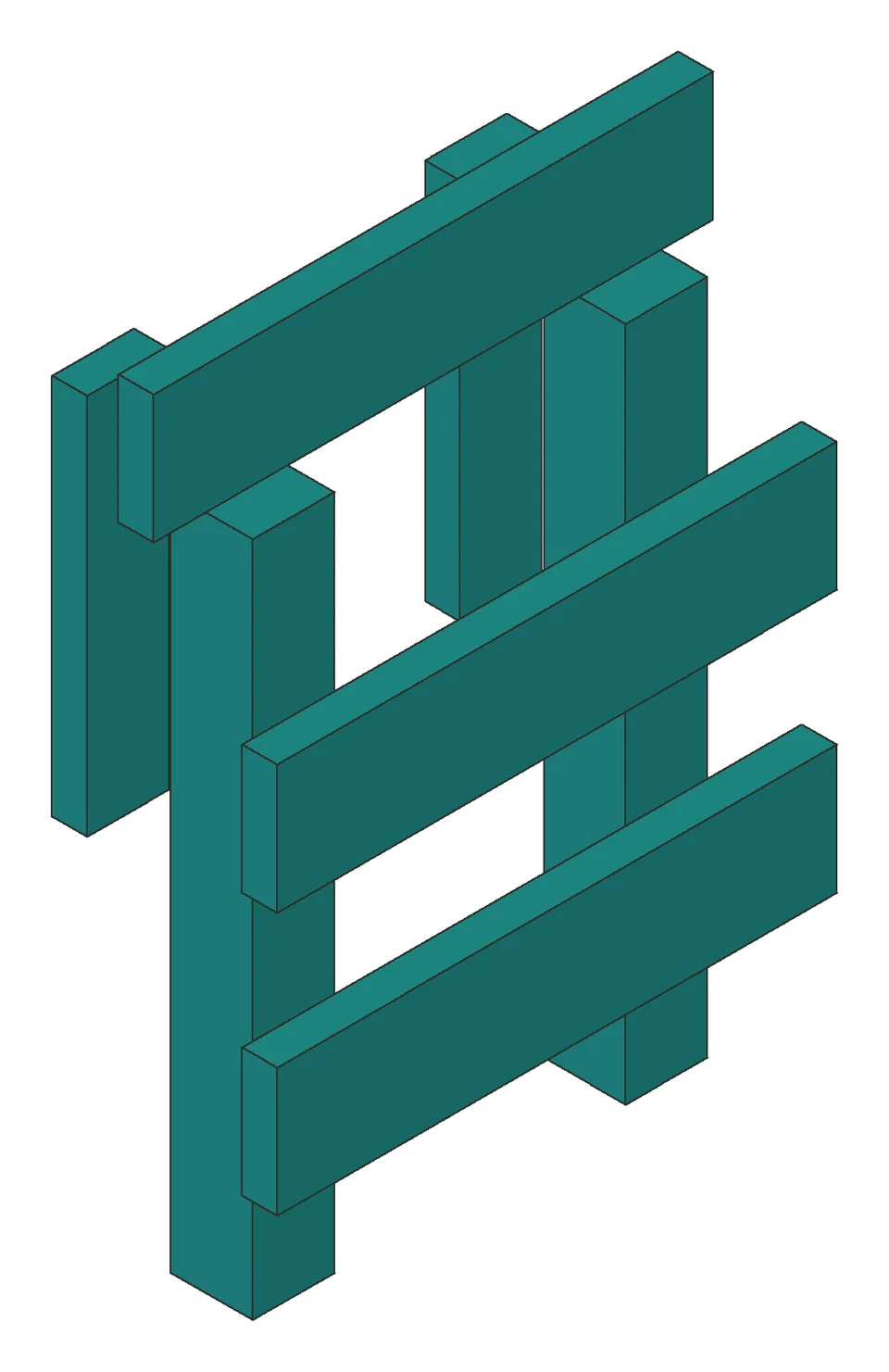

- 9 steps, each one a picture
- Your shopping list, cut list and cutting diagrams

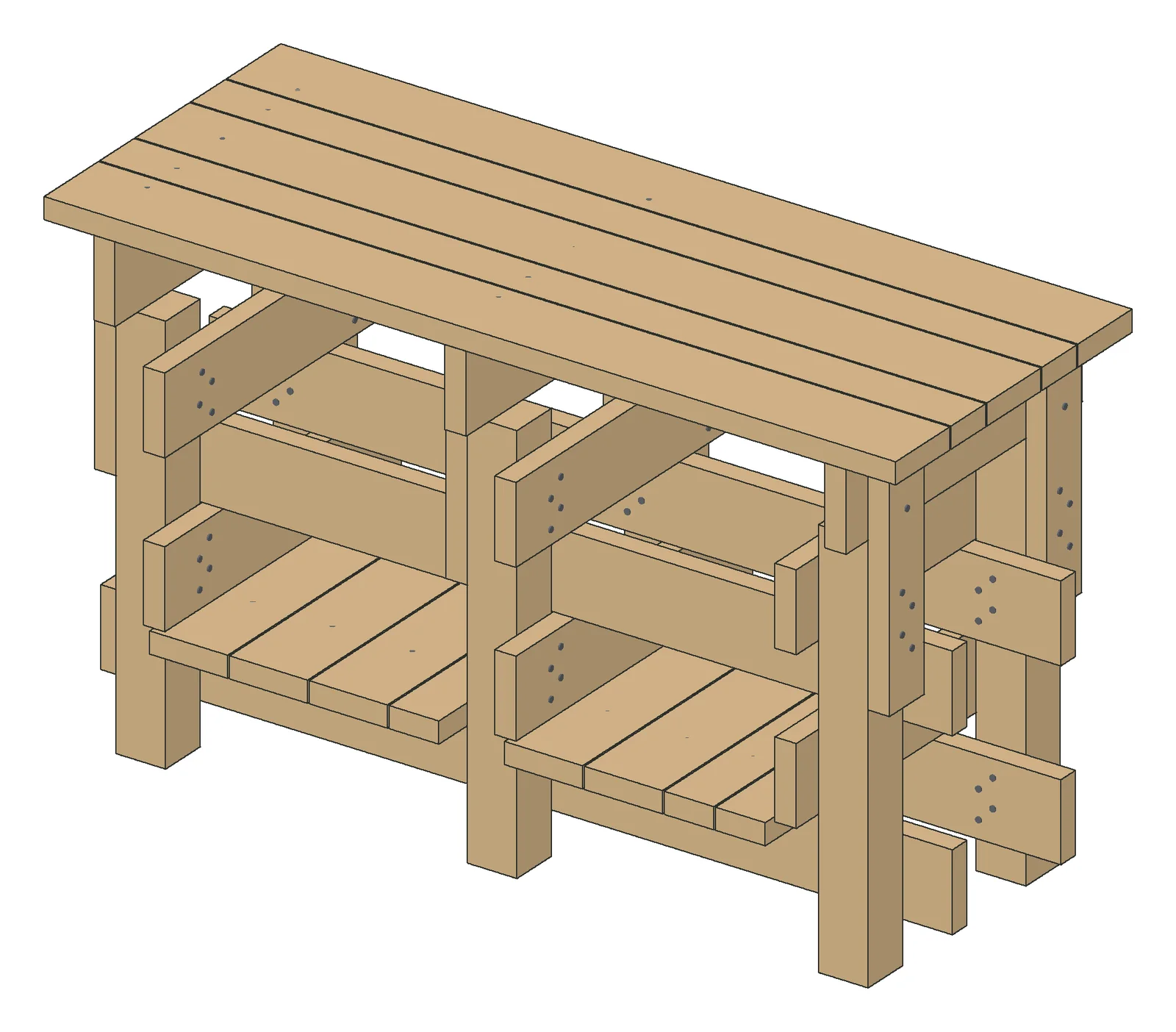

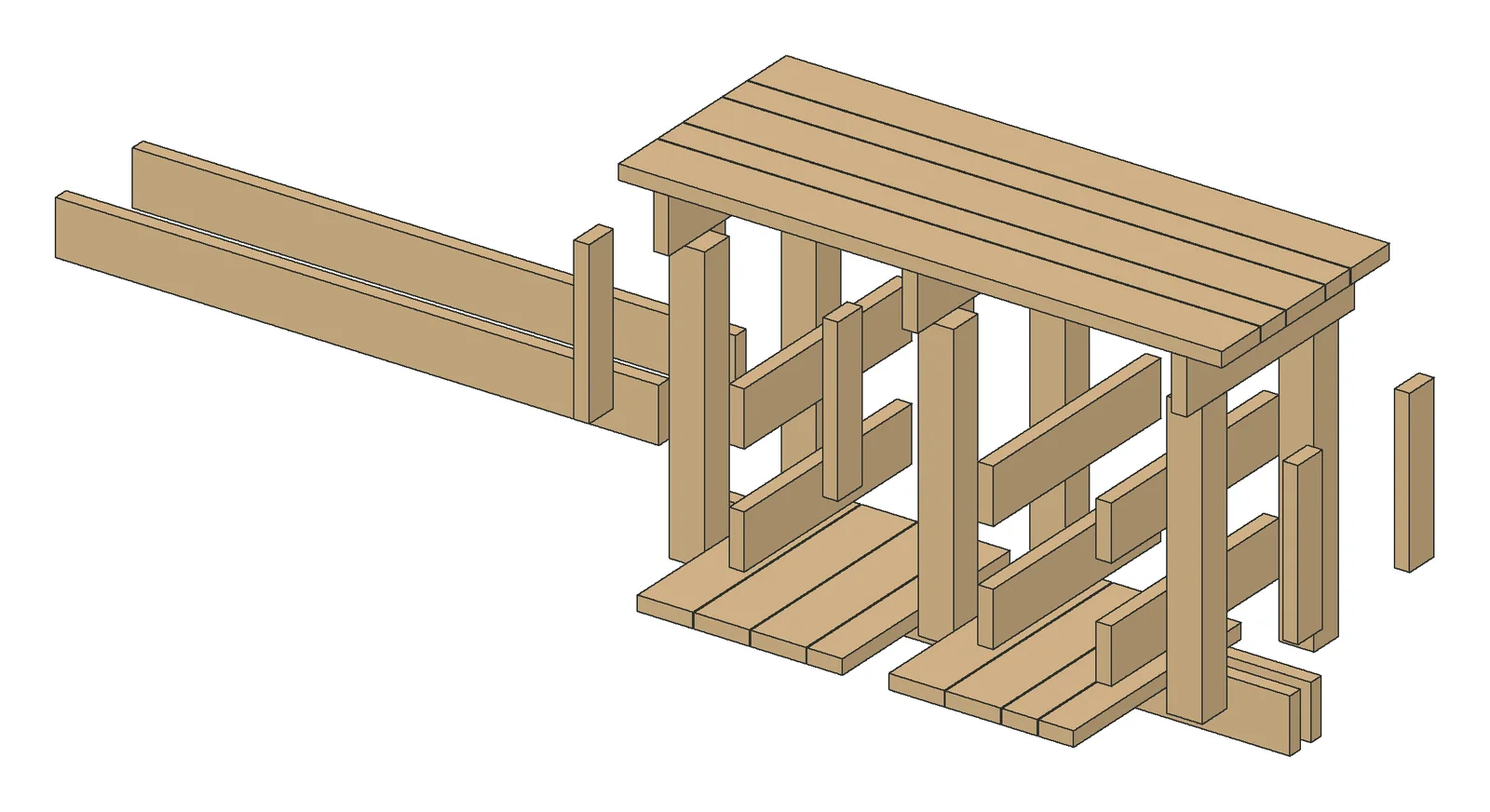

- A 3D view of the finished piece and every step
- Any size in its range: the whole plan redraws
- Size
- 60 × 24 × 36 in (152.40 × 60.96 × 91.44 cm)
- Set your size
- Workbench length: 48 to 72 in (121.92 to 182.88 cm)
- Skill
- Beginner
- Time
- A weekend
- Made for
- Assembly, household repairs and storage in a dry garage. Not a seat or a step.Weight limits are design targets checked in software, not a tested rating.
Turn it around
Drag to turn it. Pinch or use the buttons to zoom.
You'll buy from Lowe's and Home Depot
- 4 × 2x4 kiln-dried framing lumber, 8 ft
- 10 × 2x6 kiln-dried framing lumber, 8 ft
- 2 × 4x4 kiln-dried post lumber (stamp KD or S-DRY), 8 ft
- 1 × Simpson Deck-Drive DSV WOOD screw #10 x 2-1/2 in, T25, Quik Guard, 240-pack
- 3 × Simpson SDWS16212QR50, T25, Quik Guard, 50-pack
Tools
- Tape measure, pencil, speed square and a straightedge
- Circular saw or miter saw for square crosscuts
- Low-speed drill/driver with a T25 bit that, bit included, measures no more than 6 in from the bit tip to the back of the tool (a compact or right-angle driver; some screws are driven between close parts). The screws self-drill; no pilot holes
- Four or more bar clamps and a flat work surface
- Safety glasses and hearing protection
