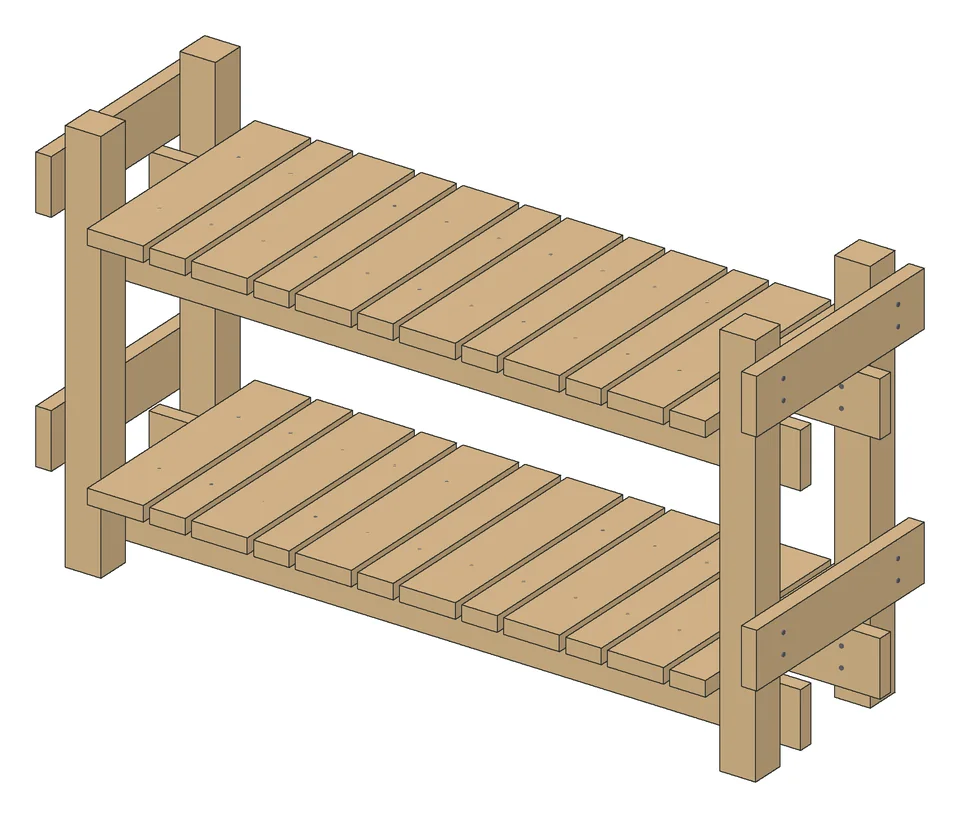

Garage Tote Shelf
Hold four garage totes and pull any one out without unstacking.
$14.99 or every plan for $14.99 a month
The store opens soon.
In the plan

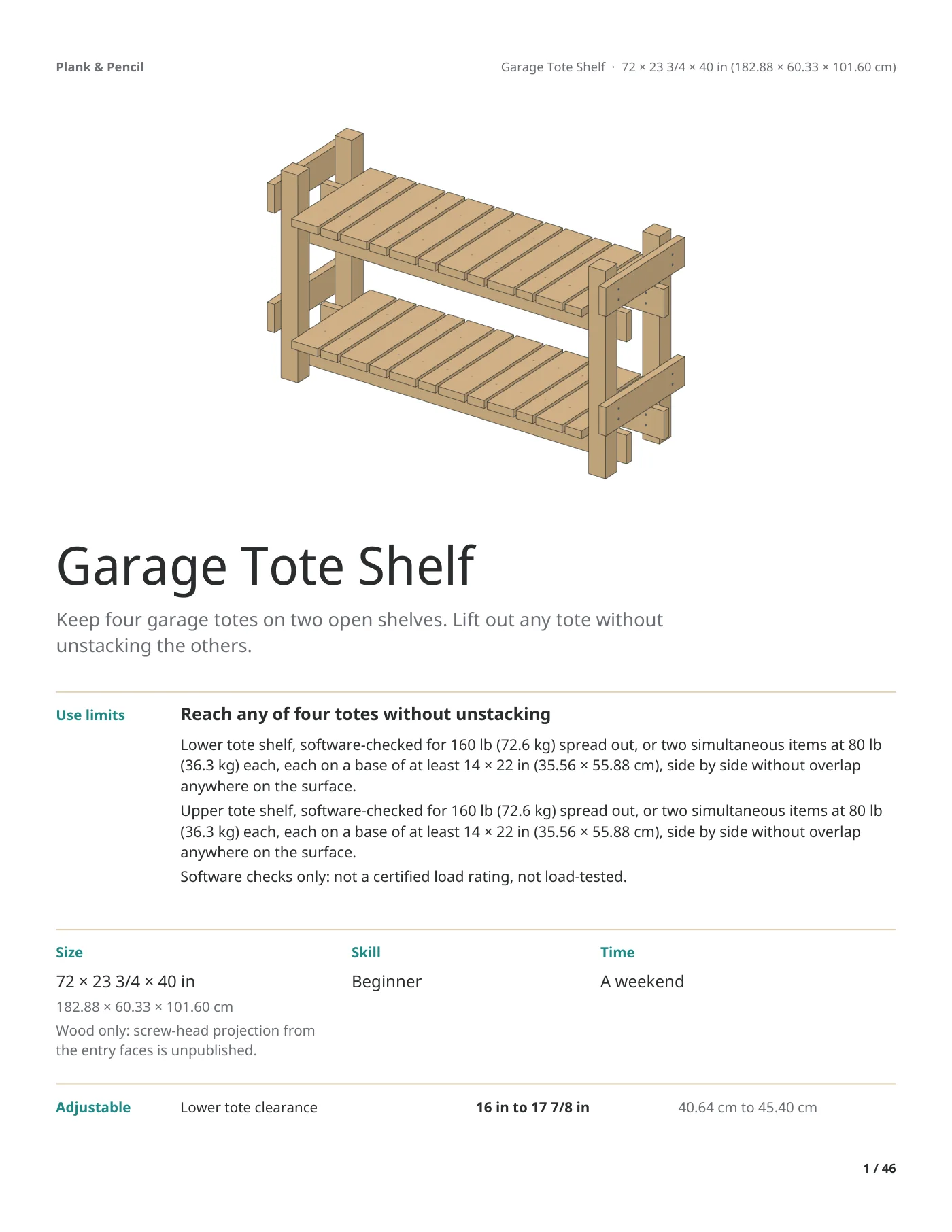

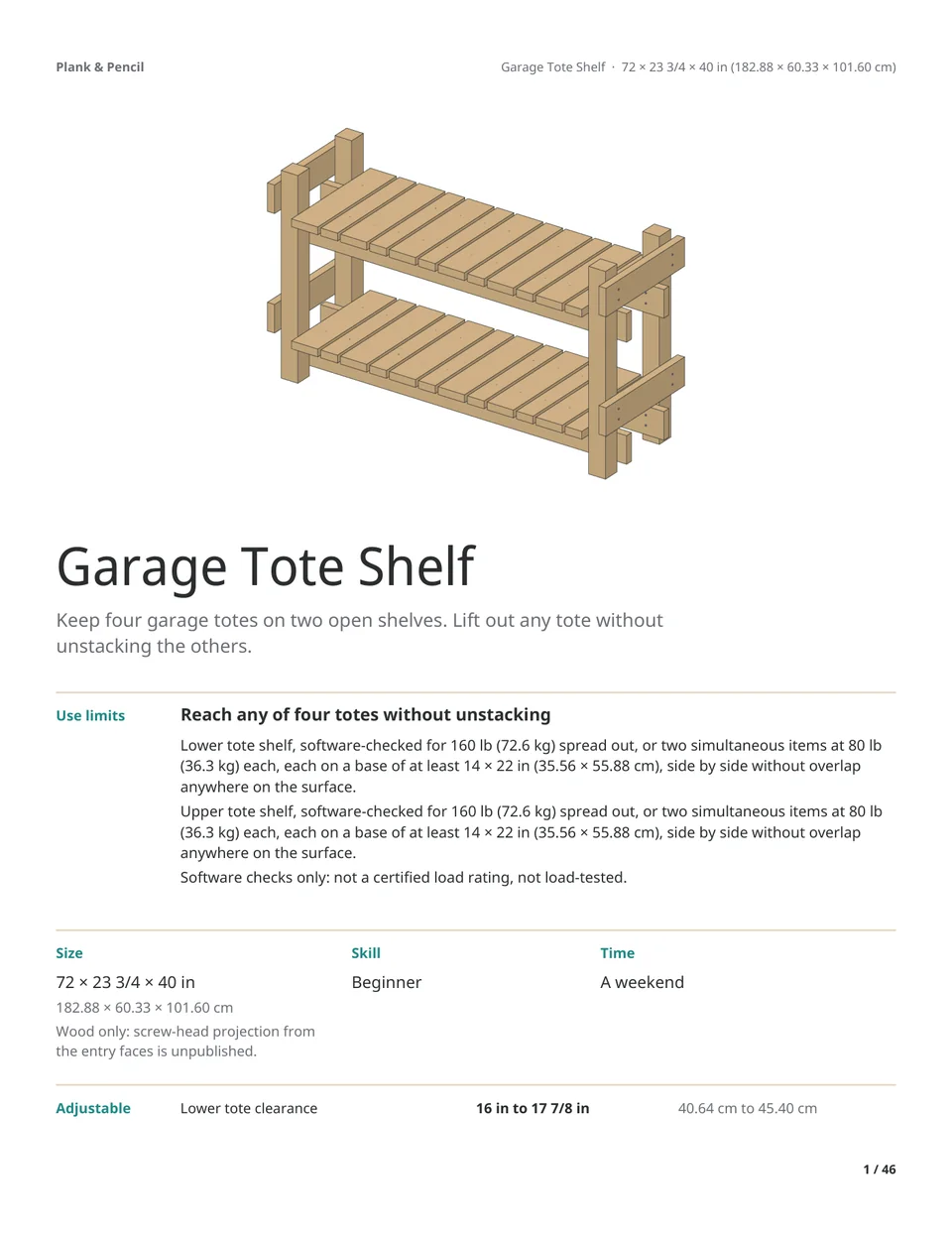

- A 46-page manual to print on US Letter

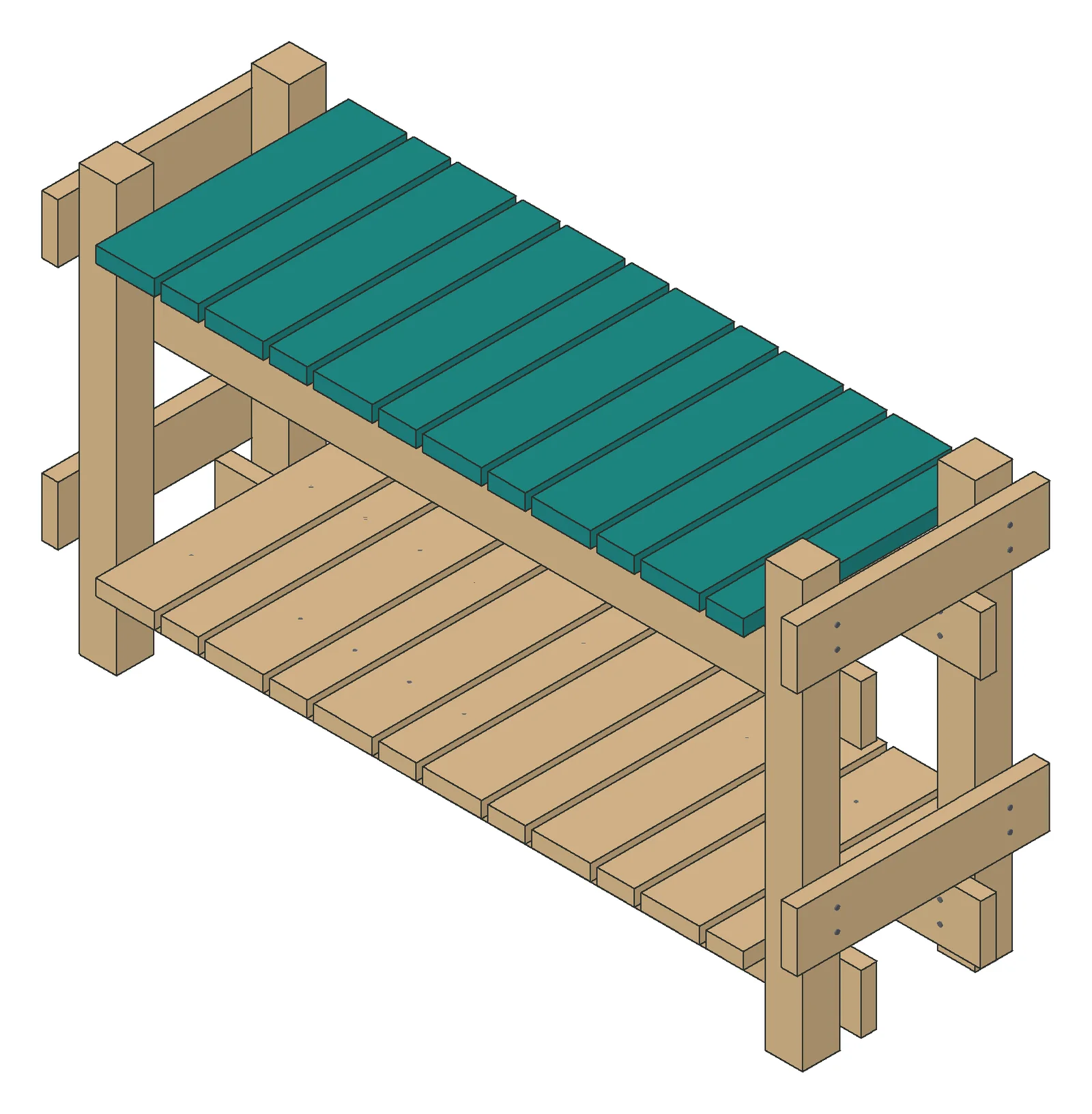

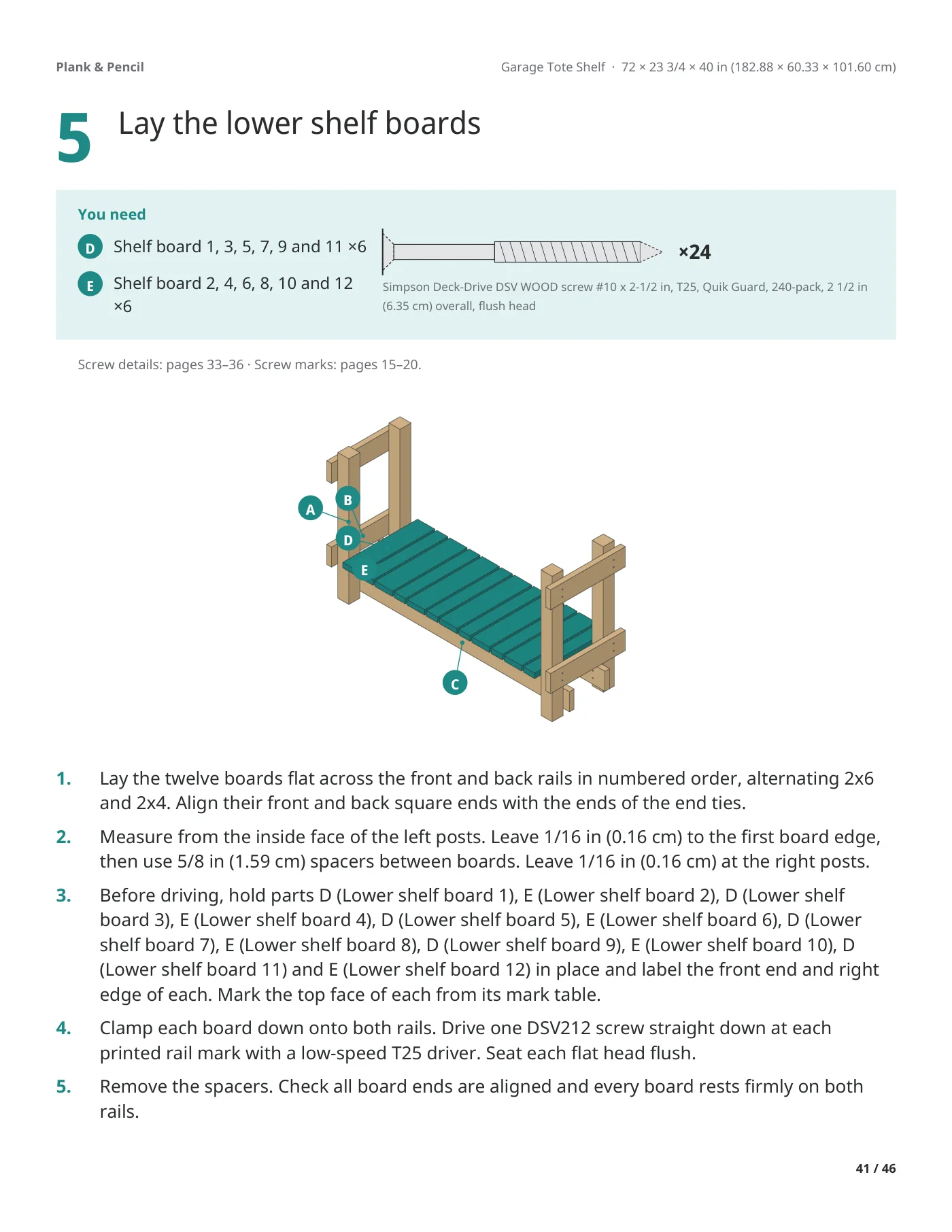

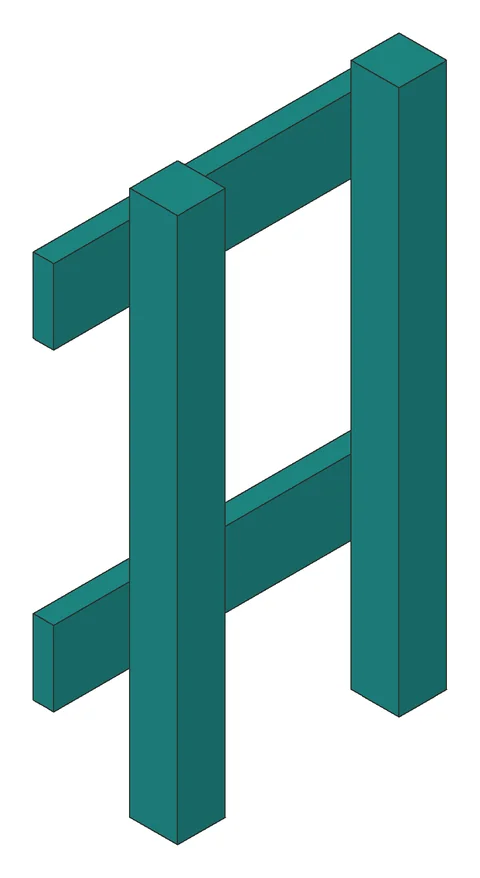

- 8 steps, each one a picture

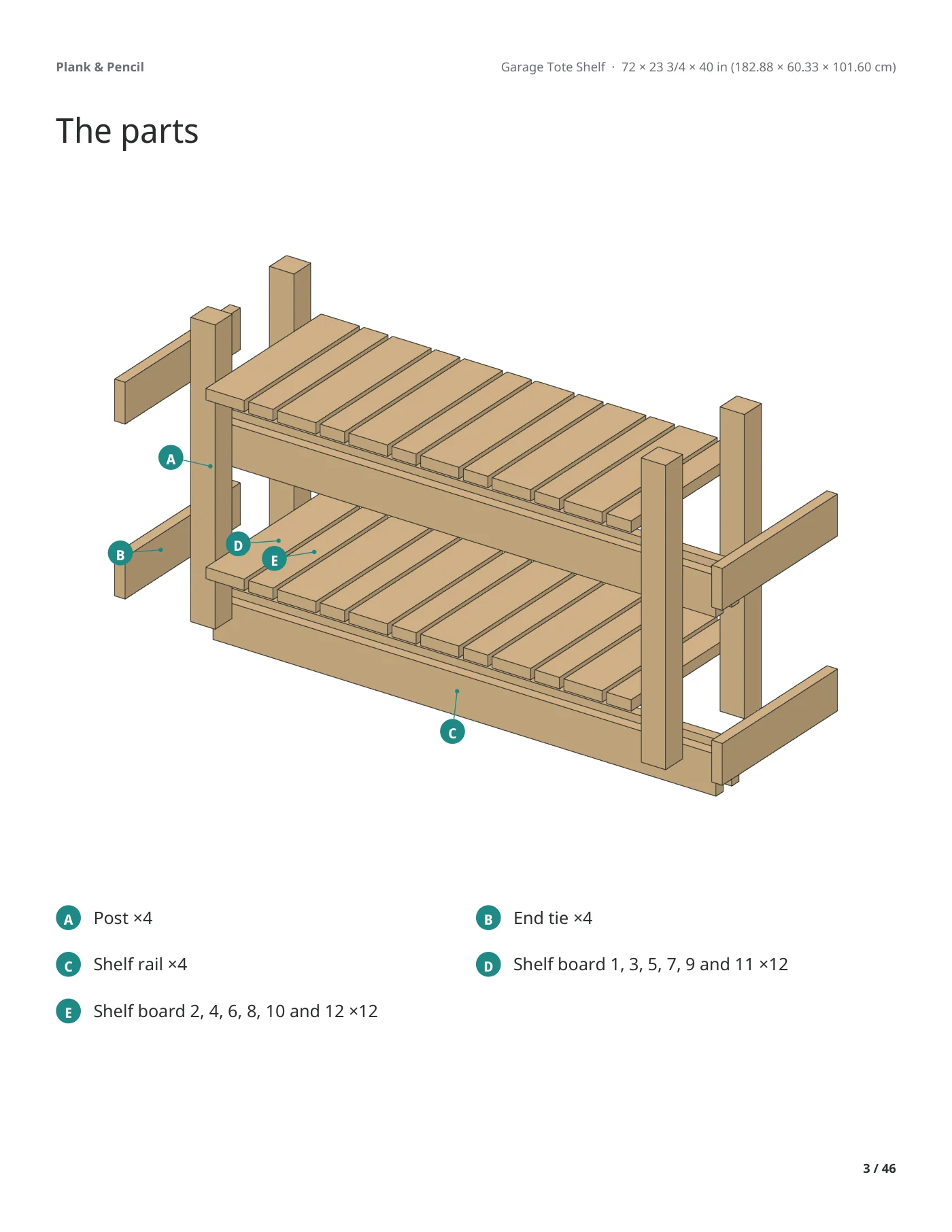

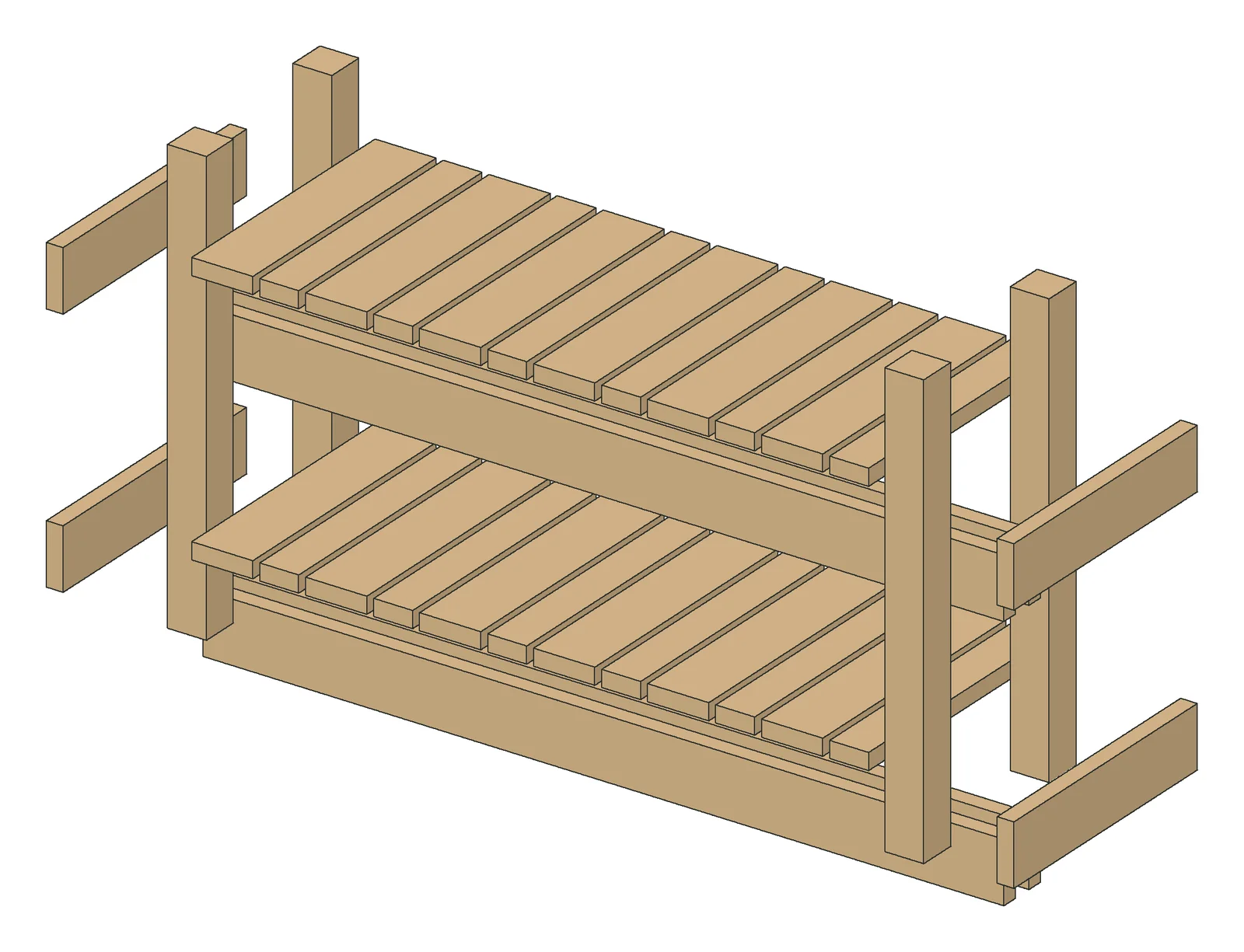

- Your shopping list, cut list and cutting diagrams
- A 3D view of the finished piece and every step
- Any size in its range: the whole plan redraws
- Size
- 72 × 23 3/4 × 40 in (182.88 × 60.33 × 101.60 cm)
- Set your size
- Lower tote clearance: 16 to 17 7/8 in (40.64 to 45.40 cm)
- Skill
- Beginner
- Time
- A weekend
- Made for
- Reach any of four totes without unstacking. Not a seat or a step.Weight limits are design targets checked in software, not a tested rating.
Turn it around
Drag to turn it. Pinch or use the buttons to zoom.
You'll buy from Lowe's and Home Depot
- 3 × 2x4 kiln-dried framing lumber, 8 ft
- 8 × 2x6 kiln-dried framing lumber, 8 ft
- 2 × 4x4 kiln-dried post lumber (stamp KD or S-DRY), 8 ft
- 1 × Simpson Deck-Drive DSV WOOD screw #10 x 2-1/2 in, T25, Quik Guard, 240-pack
- 1 × Simpson SDWS16212QR50, T25, Quik Guard, 50-pack
Tools
- Tape measure, pencil, speed square and a straightedge
- Circular saw or miter saw for square crosscuts
- Low-speed drill/driver with a T25 bit, at most 7 in (17.78 cm) long from bit tip to tool back, including the bit (use a compact or right-angle driver for the close joints). The screws self-drill; no pilot holes
- Four or more bar clamps and a flat work surface
- Safety glasses and hearing protection
